GiD is a preprocess and postprocess graphics program for finite-element
analysis. Calsef is a structure-calculating module using the
finite-element method.
The program GiD plus is a combination of the above two programs.
This should be kept in mind for a better understanding of both the
philosophy behind this manual and the use of the computational tools
explained in it.
The integration of GiD and Calsef permits the user to apply the entire
potential of GiD's graphics technology, facilitating the definition of
problems and the correct interpretation of the results.
The Calsef calculating module enables the user to solve structural
problems using the finite-element method.
Following are the steps using the finite-element method for carrying
out a thorough analysis of a structure subjected to external actions:
This manual is intended for people already familiar with applying the
finite-element method to problem solving. Therefore, by-passing any
theoretical explanation of the method, the manual goes directly to
instructions on how to enter data for setting up a problem in the
calculating module.
For theoretical questions we suggest the following book: Oñate,
E. Cálculo de estructuras por el método de los elementos finitos:
análisis estático lineal. CIMNE.
It is also supposed that the user is familiar with the basics of GiD
as a pre- and postprocessing tool. However, should questions in this
area arise, we suggest consulting GiD user's manuals in order to fully
benefit from the potential of GiD plus.
Calsef, the calculating module explained in this manual, is
applicable to the following problems:
· Planar stress and planar deformation.
· Solids of revolution.
· 3D solids.
· Shells.
· Plates.
As these problems present different geometry, boundary conditions,
loads, and geometrical definitions, Calsef is divided into distinct
parts, one for each problem type. Entering data is done in two steps:
1) selecting the problem type, and
2) specifying the characteristics of the problem in question.
Problem type
Name
3D solids
Calsef_3DSolids_V1.0
Planar stress and deformation
Calsef_PlaneState_V1.0
Solids of revolution
Calsef_RevSolids_V1.0
Plates
Calsef_Plate_V1.0
Shells
Calsef_Shell_V1.0

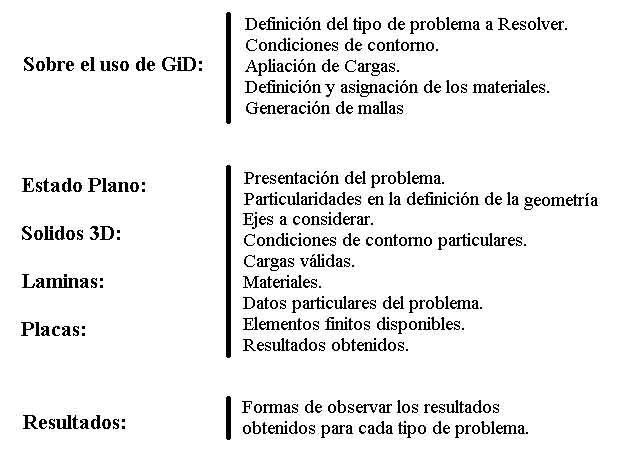

This manual is organized in the following way:
The planar state module includes further explanations in order to cover
problems of solids of revolution.
Each problem type is dealt with using an example. The user may
extrapolate the information obtained and apply it to other problems
of the same type.
