ED-Tridim ED-Tridim is an educational program for the analysis of 1D, 2D and 3D framework and pin-joint structures using matrix methods.Todays structural analysis methods are all based on matrix techniques. Matrix analysis is vital for applying the theoretical fundamentals and the numerical procedures in a clear and compact manner.

Pulse aqui para comprar ED-Tridim

ED-Tridim consists of 4 modules:

Theory
The Theory module summarises the fundamentals of structural analysis using matrix methods.It includes a theoretical appendix (with the user manual) and a Windows-based Help system (with the programs) that can be accessed at any time during the solution process.

Library
The Library module is the editor of ED-Tridim and can be used to generate and/or modify any kind of 1D, 2D and 3D framework or pin-joint structure. This includes material data, different load types and boundary conditions. There is no size limit for generating new structures.

Examples
In the Example module the structural analysis process is entirely carried out by ED-Tridim. The user merely follows the step by step instructions of the program, i.e. the node numbering, the assembly of the stiffness matrix and the load vector, applying boundary conditions etc.

Exercises
In the Exercise module the user is asked to interactively participate in the structural analysis process. Here ED-Tridim merely act as a guiding or counseling tutor. In cases of doubt the program can perform steps which are unclear to the user.

The user can perform the analysis step by step. Alternatively he can skip individual calculation phases or he can directly go to the final solution. This makes ED-Tridim an ideal tool for both educational purposes as well as for professional users.

Characteristics of ED-Tridim.

  • Generate any kind of 1D, 2D and 3D framework and pin-joint structure
  • The number of elements that can be generated is only limited by the computer's RAM
  • The Results can be printed out in graphics and in ASCII-text format
  • The user interface is interactive and user-friendly
  • The programs allow the user to adopt individual learning strategies
  • The programs improve the academic performance while the effort required is reduced
  • The programs are ideal for self-learning methods
  • Learning by doing real structural calculations

System Requirements.

  • 486-compatible PC or better
  • 4 MB RAM (8 MB recommended)
  • Microsoft Windows 95/NT

Further information

  • The program and the user manual are available in English, Spanish, German, French, Italian and Portuguese.
  • The program is protected against copying and can only be installed on one computer at a time.
  • Additional licences as well as network installations are also available.
  • Special offers for students, ask to publications@cimne.upc.edu

Pulse aqui para comprar ED-Tridim

Educational Software
 • ED-Elas2D
 • ED-Tridim
 • ED-Poiss

 • History
 • Download Center
 • Prices
 • Password
 • Suport


Any type of 3D framework structure can be generated.
The results can be easily interpreted and compared.
Visualising the resultant stress diagrams leads to a deeper understanding of the structural behaviour.
During the solution process the user is supplied with all the necessary information.
During the solution process the user is supplied with all the necessary information.
Analysis of a suspension bridge.

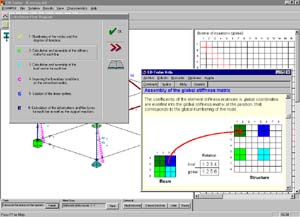

The ED-Tridim Tutor guides the user. The Theory can be consulted at any time.
